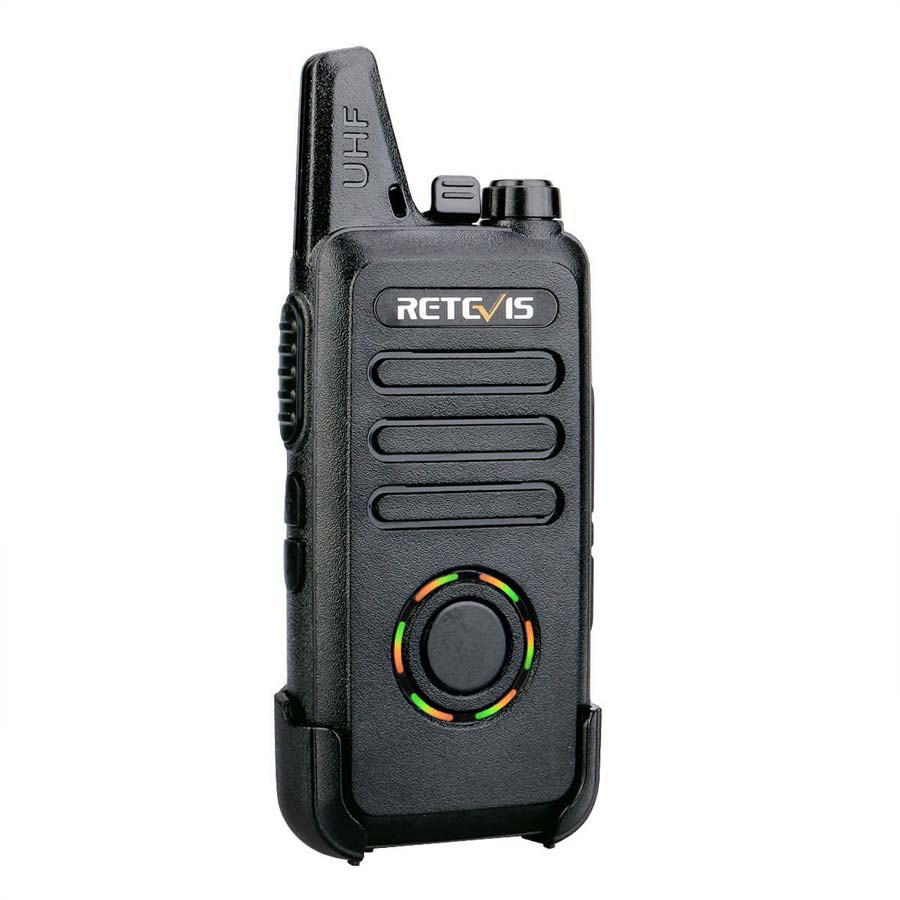

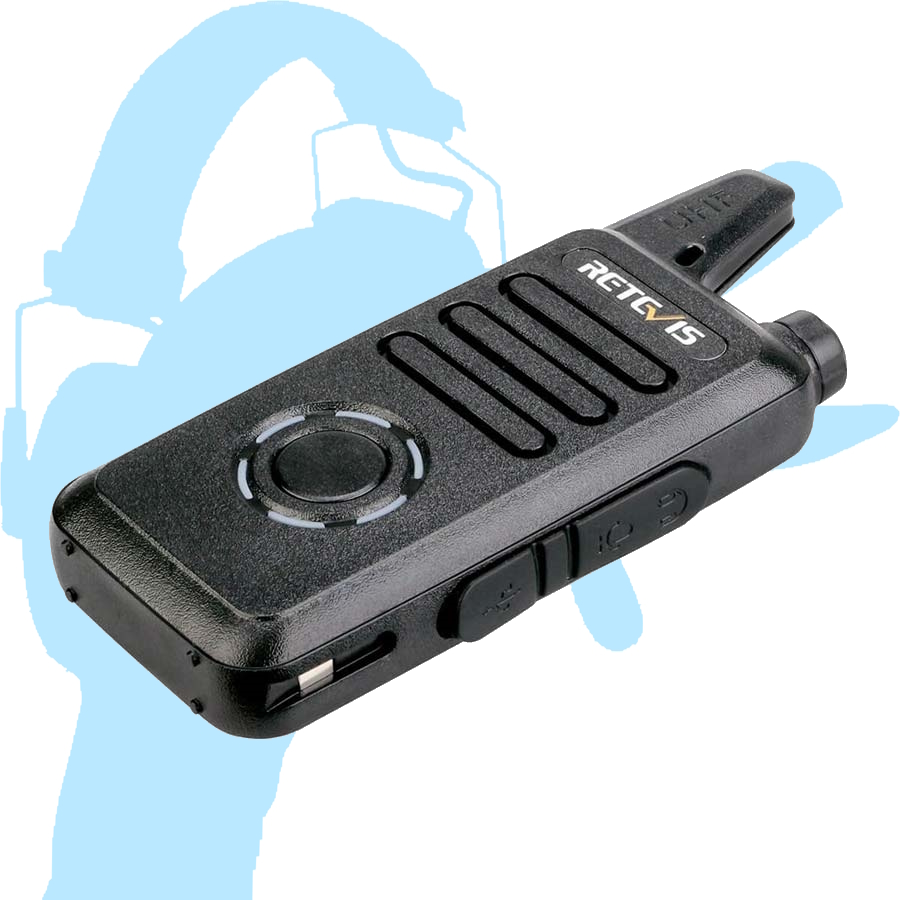

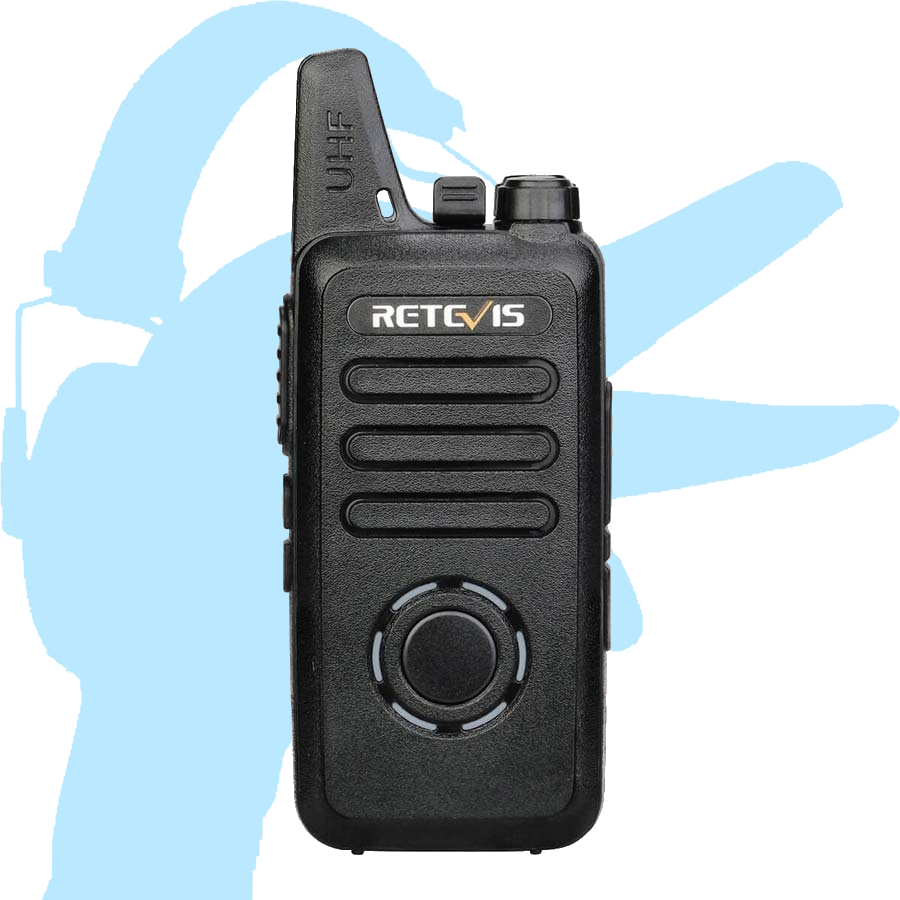

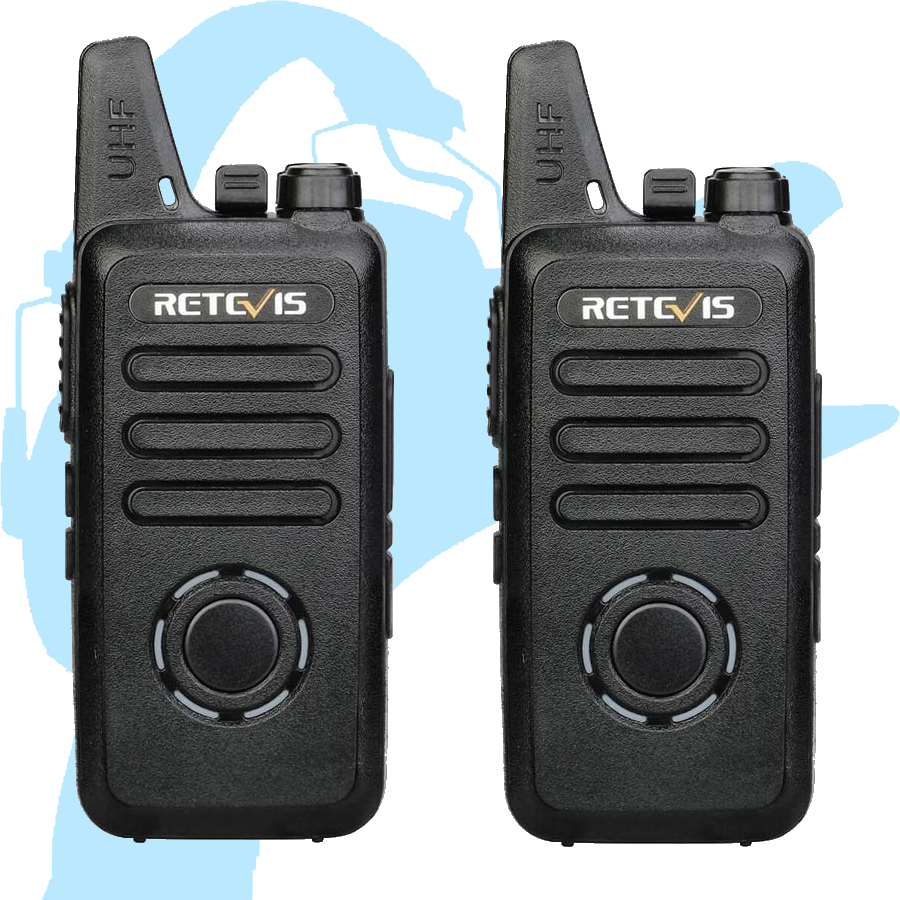

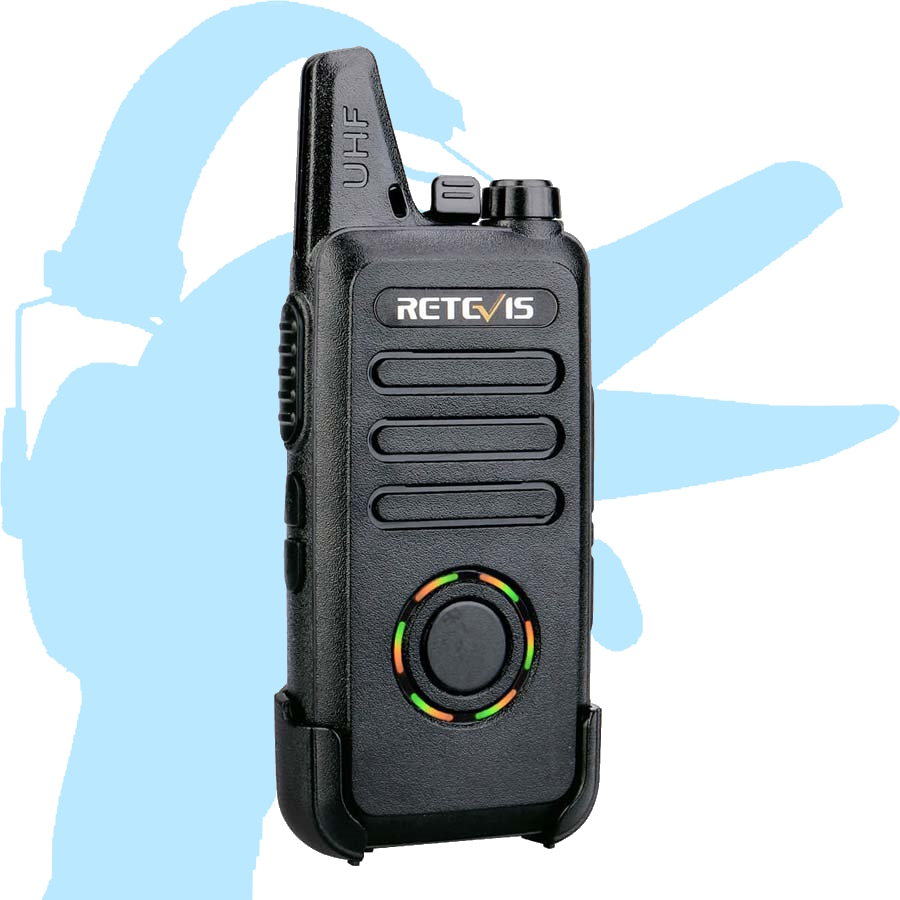

Retevis RT22S

Made by Retevis, a Chinese radio company, these little radios are actually of quite decent quality and can take quite a beating for the price.

*Advantages: Low cost; relatively durable; relatively long battery charge; compact; easy to operate; easy to program
This is our recommended pick for most businesses and families due to its resilience when dropped, slammed, or rained on, and because if it is to become damaged beyond operation, the replacement cost is low.

*Disadvantages: Long term life/reliability; 2 year battery life
The radio and/or battery seems to survive only around 2 years of daily moderate-heavy use (heat exposure in vehicles, dropping, dust and dirt), but that's fine in an environment where you expect employees to often damage equipment anyway. The total life span and reliability of the radio is reduced compared to professional radios, but this can be made up for easily with quantity in most situations, though this does make it not recommended for emergency services.

Includes: 2 radios; 2 belt clips; 2 charger cables (power only Mini USB); 1 power adapter (with 2 USB ports)

Warranty: 30 day limited (Covers against defects)

Questions? Were here for you! Feel free to call or text us, or reach us in the web chat!

*Advantages and disadvantages are based on testing, operation, and feedback of Madigan Technologies, its employees, partners, associates, and customers.

$45.00


Custom Programming Available

Give us a call, text, or email with your requirements when placing your order.

Price is per configuration, NOT per radio.
Example: 4 of the same model radios with the same 2 custom channels just needs 1 "Basic + 2 Custom"... but if one of those needed different two channels, you would need to add another custom programming.

Don't know what you're doing? No worries!
Even if you are not familiar with radios, our team will work with you to understand exactly what you are looking for and make it happen!


Programming Type:
  • Description
  • Specifications
  • Included
  • Accessories

Made by Retevis, a Chinese radio company, these little radios are actually of quite decent quality and can take quite a beating for the price.

*Advantages: Low cost; relatively durable; relatively long battery charge; compact; easy to operate; easy to program.
This is our recommended pick for most businesses and families due to its resilience when dropped, slammed, or rained on, and because if it is to become damaged beyond operation, the replacement cost is low.

*Disadvantages: Long term life/reliability; 2 year battery life.
The radio and/or battery seems to survive only around 2 years of daily moderate-heavy use (heat exposure in vehicles, dropping, dust and dirt), but that's fine in an environment where you expect employees to often damage equipment anyway. The total life span and reliability of the radio is reduced compared to professional radios, but this can be made up for easily with quantity in most situations, though this does make it not recommended for emergency services.

*Advantages and disadvantages are based on testing, operation, and feedback of Madigan Technologies, its employees, partners, associates, and customers.

Note: If using the separate drop-charger, the belt clip must be off the radio, and that charger is also powered by Mini USB.

GENERAL
Channels: 22 (some may have 32 available)
Modulation: FM (F3E)
Bandwidth: 12.5KHz; 25KHz
Power Source: 3.7VDC
Accessory Port(s): Kenwood 2-Pin
Charge Port(s): USB Mini A Female; Proprietary Connection for Drop Charger
Audio Formats: Standard Analog; Beat Shift Voice Inversion Scrambler
Transceive Mode(s): Analog Simplex; Analog Half Duplex (HDX) (Repeater)

ANTENNA
Type: Integrated
Connection: N/A
Gain: 1.8dBi
Frequency Range: 400-470MHz
Power Limit: 2W
VSWR: --
Impedance: 50Ω

RANGE
Theoretical Range (LoS): 0.5-2 miles
Theoretical range is provided by the manufacturer and is based on Line of Sight, where there is nothing in-between both radios.
Tested Range - Line of Sight: not yet tested
Tested Range - Flat Ground Woods: 0.38 miles
Tested Range - On Ground In City (Straight): not yet tested
Tested Range - On Ground In City (Obstructions): not yet tested
Range tests performed by Madigan Tech.
We consider the limit to be when it is too difficult to understand each other.

TRANSMITTER
Frequency Range: Rated for 400-470MHz
Power: ≈0.5W; ≤2W
Deviation: ≤±5KHz
Residual Radiation: <60Db
Current: ≤1000mA

RECEIVER
Frequency Range: 400-520MHz
Sensitivity: <0.16μV(12dB SINAD)
Squelch Sensitivity: <0.2μV
Intermodulation: 50dB
Audio Power: ≥300Mw
Current: ≤100mA
Squelch Current: 20mA

BUTTONS
Volume/Power Knob
Push To Talk (PTT)
Side Button 1 (Press): Channel up
Side Button 1 (Hold): Open Monitor
Side Button 2 (Press): Channel Down
Side Button 2 (Long Press): Nothing; Scan; Emergency Alarm (Local); Battery Display
Press both side buttons to lock/unlock buttons.

OTHER SETTINGS/FEATURES
Time Out Timer (TOT): Off; 30s; 60s; 90s; 120s; 150s; 180s; 210s; 240s; 270s; 300s
Voice Activation (VOX)
VOX Delay: 0.5s; 1.0s; 1.5s; 2.0s; 2.5s; 3.0s
Scan Mode
Scan Modes: Carrier; Time
Voice Announcements: None; English; Chinese
Battery Saver
Read/Write Programming Password
This password can be easy for a professional to defeat and will NOT properly secure the radio.

2 Radios
2 Radio Belt Clips
2 Charger Wires (USB Type A Male - USB Mini A Male)
1 Dual-Port USB Charger Adapter (110VAC)

Drop Charger
Speaker Mic
Covert Earpiece
Aviation/Racing Headset
Programming Cable

Replacement Battery
Replacement Clip
